Fanvil VIK-01 Video Intercom Kit

Model: FAN-VIK-01
  • Fanvil VIK-01 Video Intercom Kit
  • Fanvil VIK-01 Video Intercom Kit
  • Fanvil VIK-01 Video Intercom Kit
  • Fanvil VIK-01 Video Intercom Kit
  • Fanvil VIK-01 Video Intercom Kit
  • Fanvil VIK-01 Video Intercom Kit
R3,027.72
Current Reviews: 0 Add Your Review
QTY :

 Ask a Question

Fanvil VIK-01 | Intercom Kit - 7" Colour Touch Screen Indoor Station, 2W Speaker and 2MP Video Door Phone - Dual-Band Wireless

Single-Family Smart Key: Instant Access

The Fanvil VIK-01 Video Intercom Kit integrates the i504W SIP Indoor Station, i60 Video Door Phone and Fanvil Link App. Users can make HD video calls and remotely unlock doors via the indoor unit or Fanvil Link App, with multiple unlocking options and 2.4GHz/5.0GHz Wi-Fi support. Achieve plug and play deployment with simple power and network connections.

FEATURES:

  • Plug and play, quickly deployment
  • Flexible door access methods
  • Monitor door phone camera footage on both mobile and indoor station
  • Remote door opening anytime, anywhere
  • Supports one-touch calling
  • CCTV integration

SPECIFICATIONS:



FANVIL I504W SPECIFICATIONS
Screen 7" 1024×600 Colour Capacitive Touch Screen
Body ABS
Speaker 2W
Wi-Fi 2.4GHz/5.0GHz

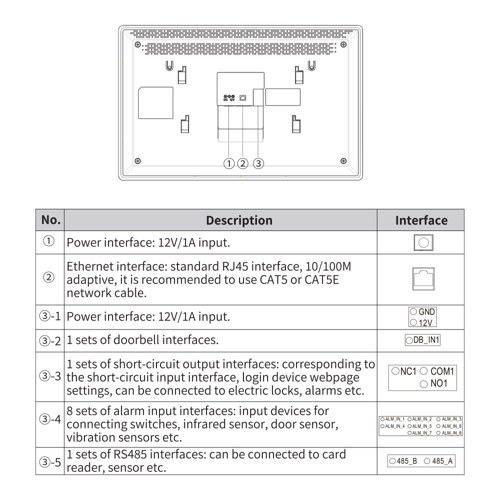

Interface 8×Alarm Input, 1× Short -Circuit Output, 1× Doorbell input, 1× RS485 (Reserved)
Network 10/100Mbps Adaptive
Power Supply DC12V 1A
PoE: 3.65~6.64W
Working Temperature -10~50°C
Storage Temperature -40~80°C
Working Humidity 10~90%
Size (L × W × H) 177.38 × 113.99 × 22.5mm
Installation Wall-Mounted
Functional Capabilities
Supported Protocols SIP 2.0 over UDP/TCP/TLS
Audio Narrowband Codec: G.711A/U, G.723.1, G.726-16 / 24 / 32 /40, G.729AB, iLBC
Broadband Codec: G.722, OPUS
Full-Duplex Hands-Free Calling, Supports Acoustic Echo Cancellation (AEC)
Video Hardware Decoding: H.264, H.265 (Optional)
Video Call Resolutions: QVGA / CIF / VGA / 4CIF / 720p / 1080p
DTMF In-Band
Out-of-Band DTMF (RFC2833)
SIP Info
Do Not Disturb (DND) Supported and the Time Can Be User-Defined
Supports Viewing Video from Third-Party IP Cameras
Customising Incoming Call Ringtones
Remote Door Unlocking
Sending/Receiving Messages
FANVIL I60 SPECIFICATIONS
Keyboard 1× Speed-Dial Button
Body ABS and PC
Colours Panel: Black
Housing: Gunmetal
Sensor 1/2.9", CMOS
Camera 2MP, Supports Infrared
Viewing Angle 140° (FOV), 100° (Horizontal), 57° (Vertical)
Output Video H.264 (Baseline, Main Profile)
Light Sensitivity 0.1 Lux
Card Storage 1,0000
Power Consumption PoE: 1.63~6.93W
Adapter: 1.51~6.16W
Power Supply DC12V 1A
PoE 802.3af Class 3
Working Temperature -40~70°C
Storage Temperature -40~70°C
Dimensions 50 × 130 × 30mm
IP Level IP65
Installation Wall-Mounted
Rain Cover
Functional Capabilities
Supported SIP 2.0 over UDP/TCP/TLS
Lock Opening IC Card
By DTMF Code
Remote Door Opening
BLE
Interface Wiegand Input / Output
Short-Circuit Input / Output
Supported Wiegand 26, 34bit
Supported ONVIF Profile S
Supported Standards IC Card
DTMF
Indoor Switch
BLE Cards 13.56 MHz
Talking Mode Full-Duplex (High-Definition Audio)
Supports Built-In Relay
Motion Detection
Tamper Alarm
TF Card
Open API
