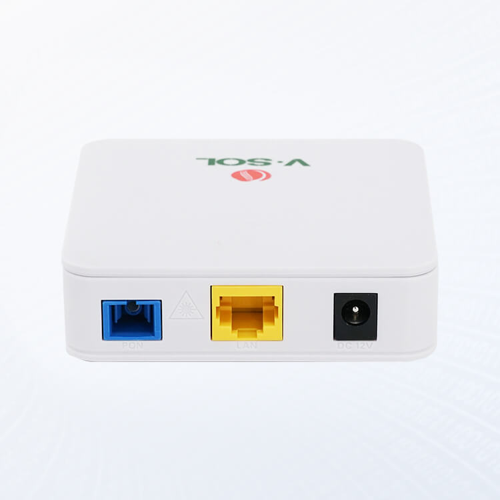

VSOL V2801RD Single Port xPON ONU

Model: VSOL-V2801RD
  • VSOL V2801RD Single Port xPON ONU
R288.94
Current Reviews: 0 Add Your Review

 Ask a Question

Hardware Parameter
Dimension 82mm×82mm×25mm(L×W×H)
Net weight 85g
Operating condition Operating Temp: -10 ~ +55°C
Operating Humidity: 5 ~ 95%(non-condensed)
Storing condition Storing temp: -40 ~ +70°C
Storing humidity: 5 ~ 95%  (non-condensed)
Power adapter DC 12V, 0.5A, external AC-DC power adaptor
Power supply ≤4W
Interface 1GE
Indicators SYS, LINK/ACT, REG

○ Interface parameter
PON interface
  • 1XPON port(EPON PX20+ and GPON Class B+)
  • SC single mode, SC/UPC connector
  • TX optical power: 0～+4dBm
  • RX sensitivity: -27dBm
  • Overload optical power: -3dBm(EPON) or -8dBm(GPON)
  • Transmission distance: 20KM
  • Wavelength: TX 1310nm, RX1490nm
LAN interface 1*GE, Auto-negotiation RJ45 connectors
○ Function Data
XPON Mode Dual mode,Auto-access to EPON/GPON OLT
Uplink Mode Bridging and Routing Mode
Abnormal protection Detecting Rogue ONU, Hardware Dying Gasp
Firewall DDOS, Filtering Based on ACL/MAC/URL
○ Product Feature
Basic
  • Support MPCP discover®ister
  • Support authentication Mac/Loid/Mac+Loid
  • Support Triple Churning
  • Support DBA bandwidth
  • Support auto-detecting, auto-configuration, and auto firmware upgrade
  • Support SN/Psw/Loid/Loid+Psw authentication
Alarm
  • Support Dying Gasp
  • Support Port Loop Detect
  • Support Eth Port Los
LAN
  • Support Port rate limiting
  • Support Loop detection
  • Support Flow control
  • Support Storm control
VLAN
  • Support VLAN tag mode
  • Support VLAN transparent mode
  • Support VLAN trunk mode(max 8 vlans)
  • Support VLAN 1:1 translation mode(≤8 vlans)
  • Auto VLAN detection
Multicast
  • Support IGMP v1/v2/Snooping
  • Max Multicast vlan 8
  • Max Multicast Group 64
QOS
  • Support 4 queues
  • Support SP and WRR
  • Support 802.1P
L3
  • Support IPv4
  • Support DHCP/PPPOE/Static IP
  • Support Static route
  • Support NAT
Management
  • Support CTC OAM 2.0 and 2.1
  • Support ITUT984.x OMCI
  • Support WEB
  • Support TELNET
  • Support CLI
